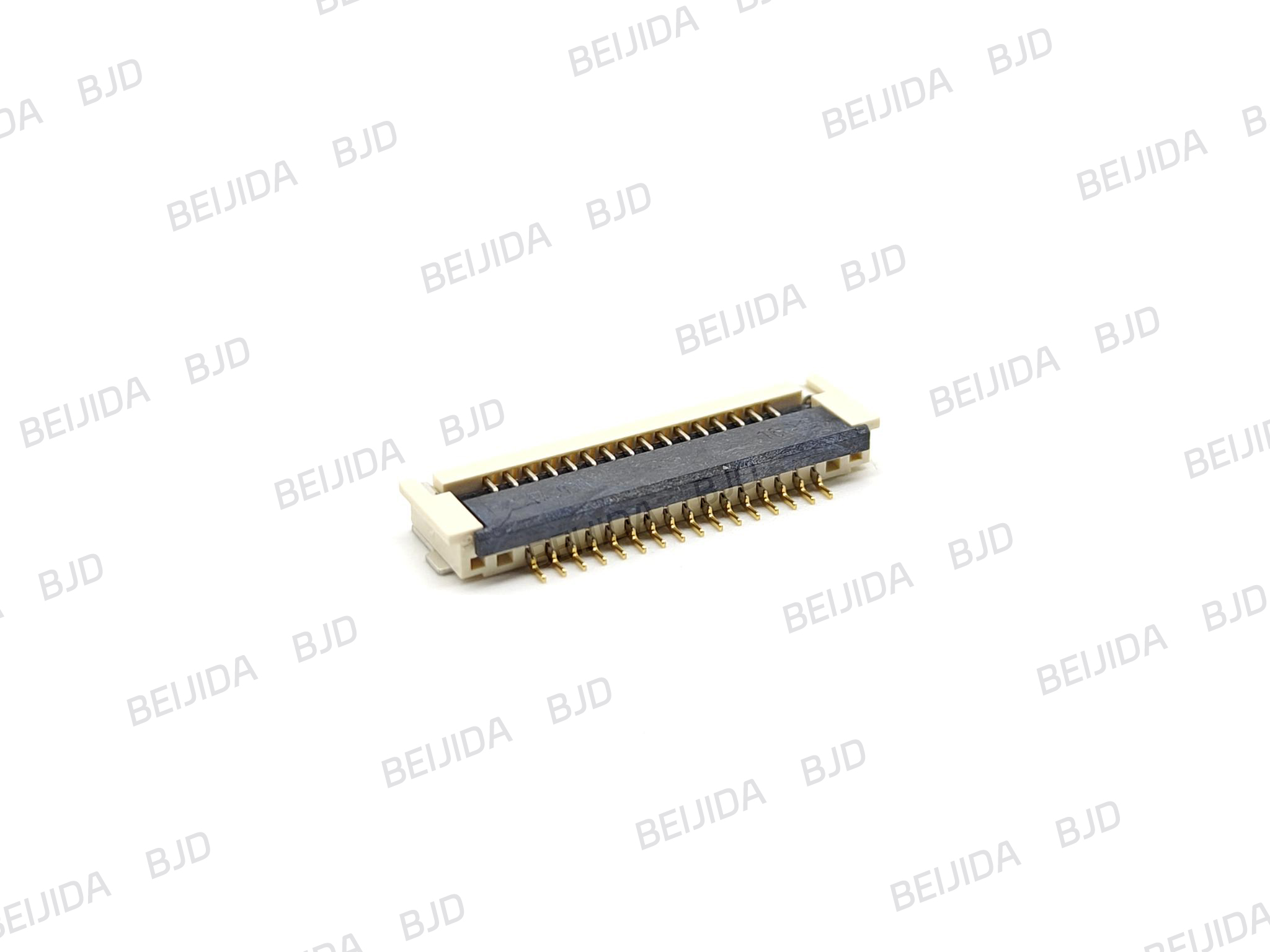

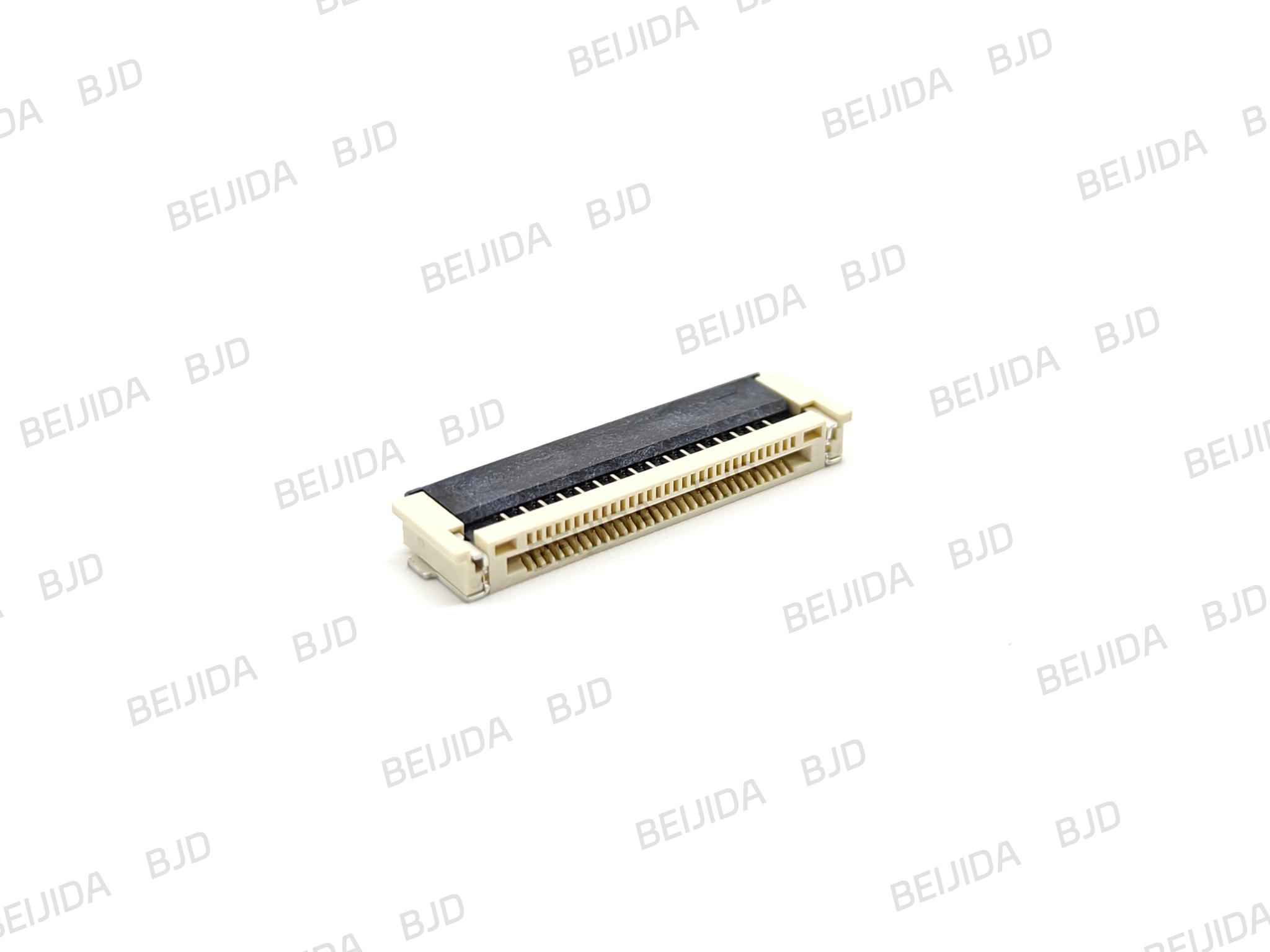

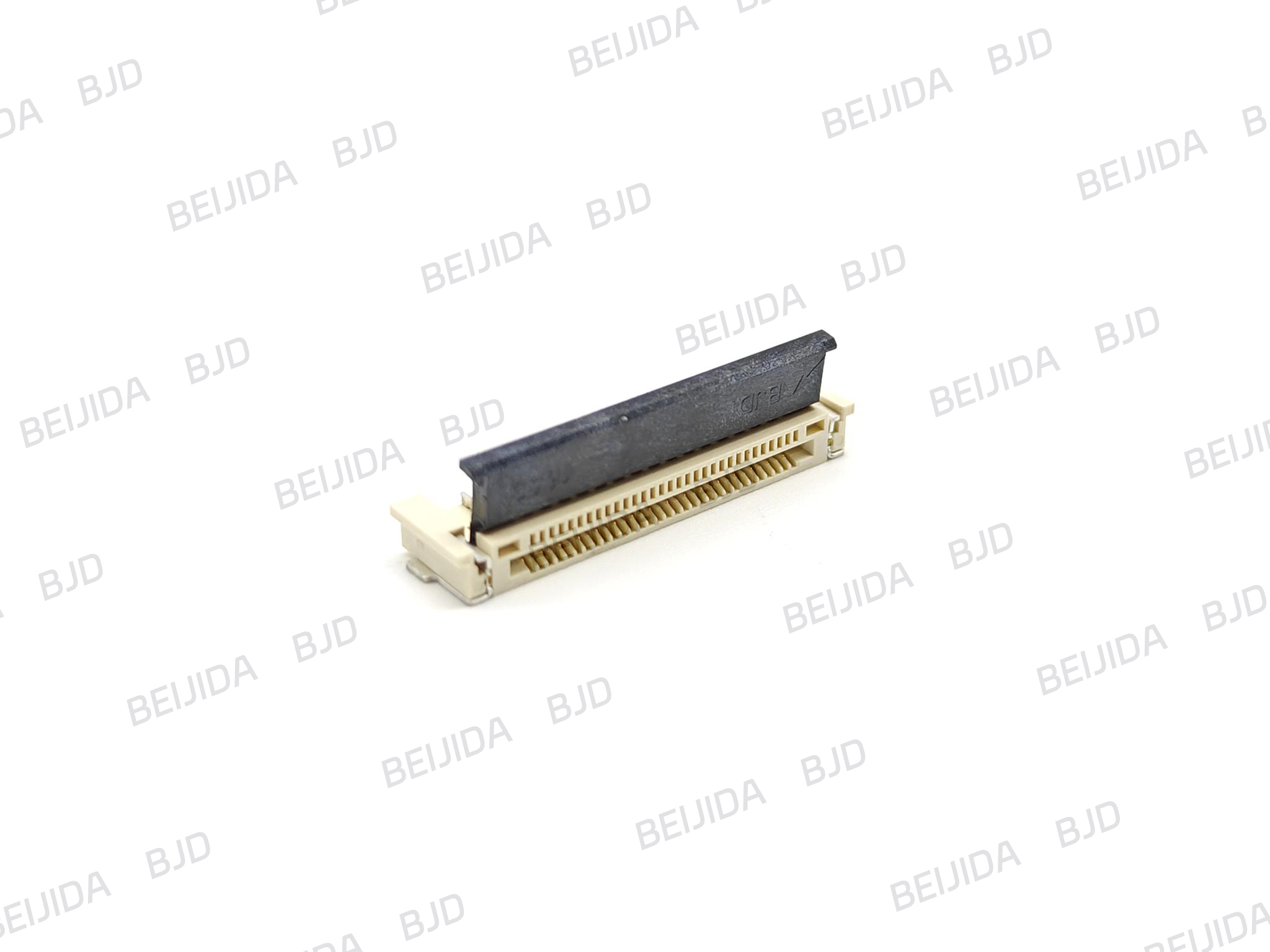

1.0-7 Series

1.0-7 Series、1.0mm、ZIF、Horizontal（SMT）、Rear flip、Bottom Contact

Viewing Series Products

Related parameters

ZIF / Non-ZIF

ZIF
Offset Terminal Design

Receptacle
Rated Current

1 A
Rated Voltage

50V AC/DC
Operating Temp. Range

-40 ℃ ~ 105 ℃
FPC/FFC Insertion Direction

Horizontal
Contact Position

Dual Contact
Mount Type

Horizontal（SMT）
Pin Count

4 ~ 30
Locking Mechanism

Front Flip
Pitch

1.0
Note
