Home Products FPC/FFC Connectors 101057-20XX50

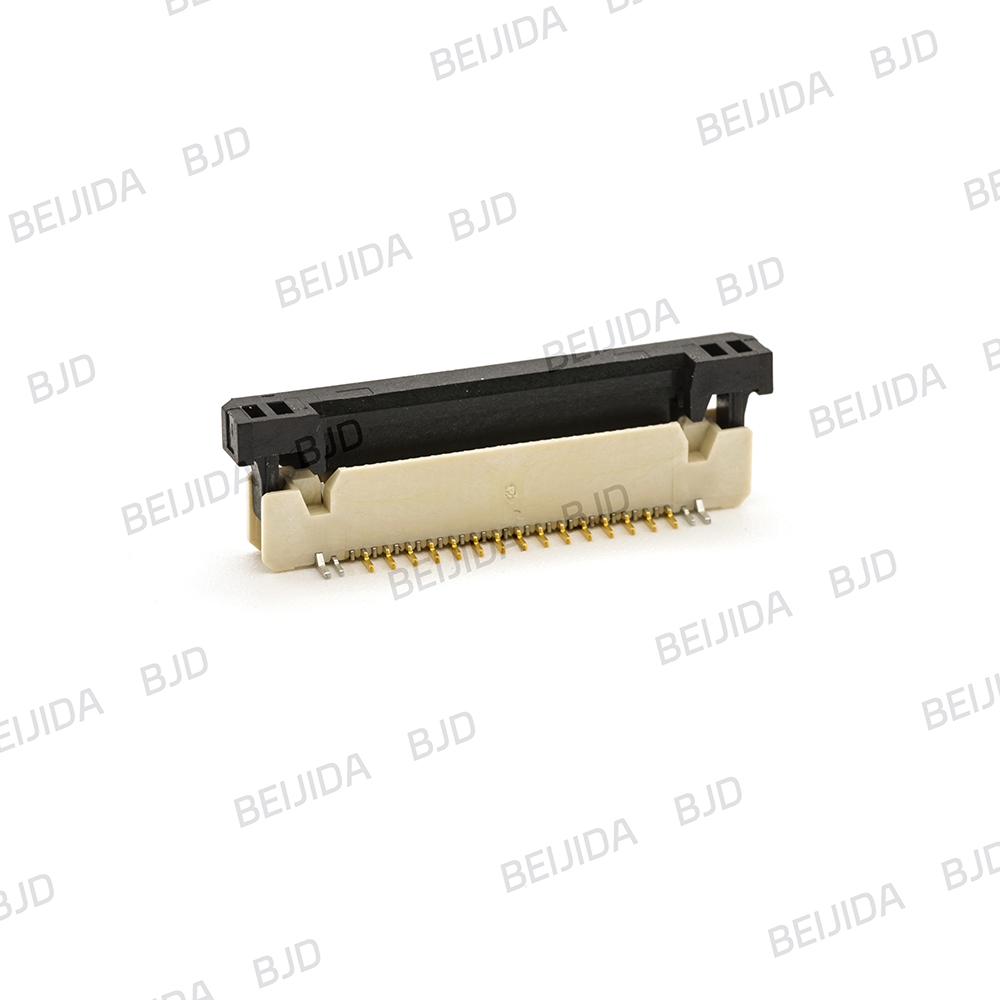

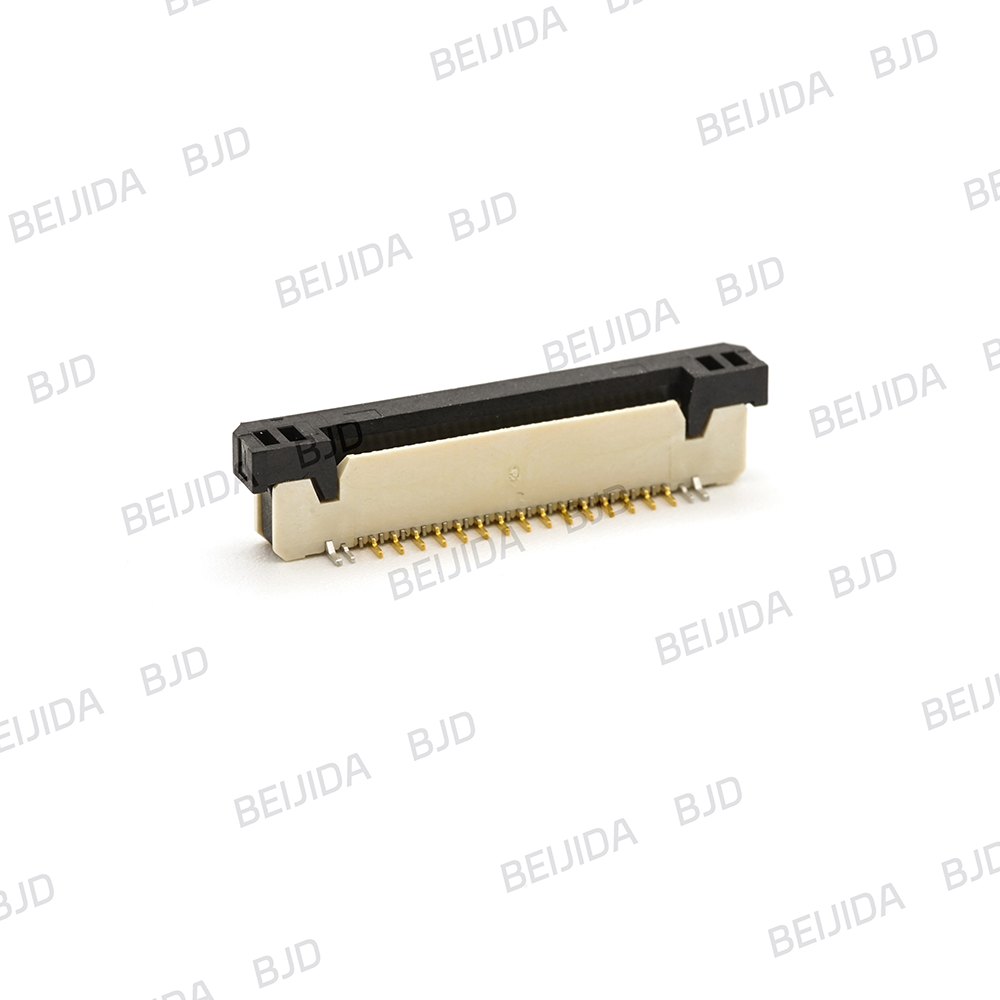

101057-20XX50

锁条为双层结构，解决了拔插式长Pin极立贴FPC Conn.锁条断裂的问题;
产品高度5.5mm，厚度3.2mm 间距为0.5mm的紧凑设计，采用ZIF方式，带锁条立贴;

Download all materials

Related parameters

Soldering Pin Position

Reverse Foot
Rated Current

0.5A
Rated Voltage (DC)

50V
Rated Voltage (AC)

50V
Operating Temperature

-40°C ~ 105°C
Contact Position
FPC/FFC Insertion Direction

Vertical
Connector Length
Connector Width
Connector Height

5.5mm
Applicable Wire

Detent latch
Mount Type

Vertical（SMT）
Locking Mechanism

Slider
Pin Count

10-60
Connector Type

FPC/FFC Connector

Download

产品图纸 2023-06-01
257.07 KB
Download Now
