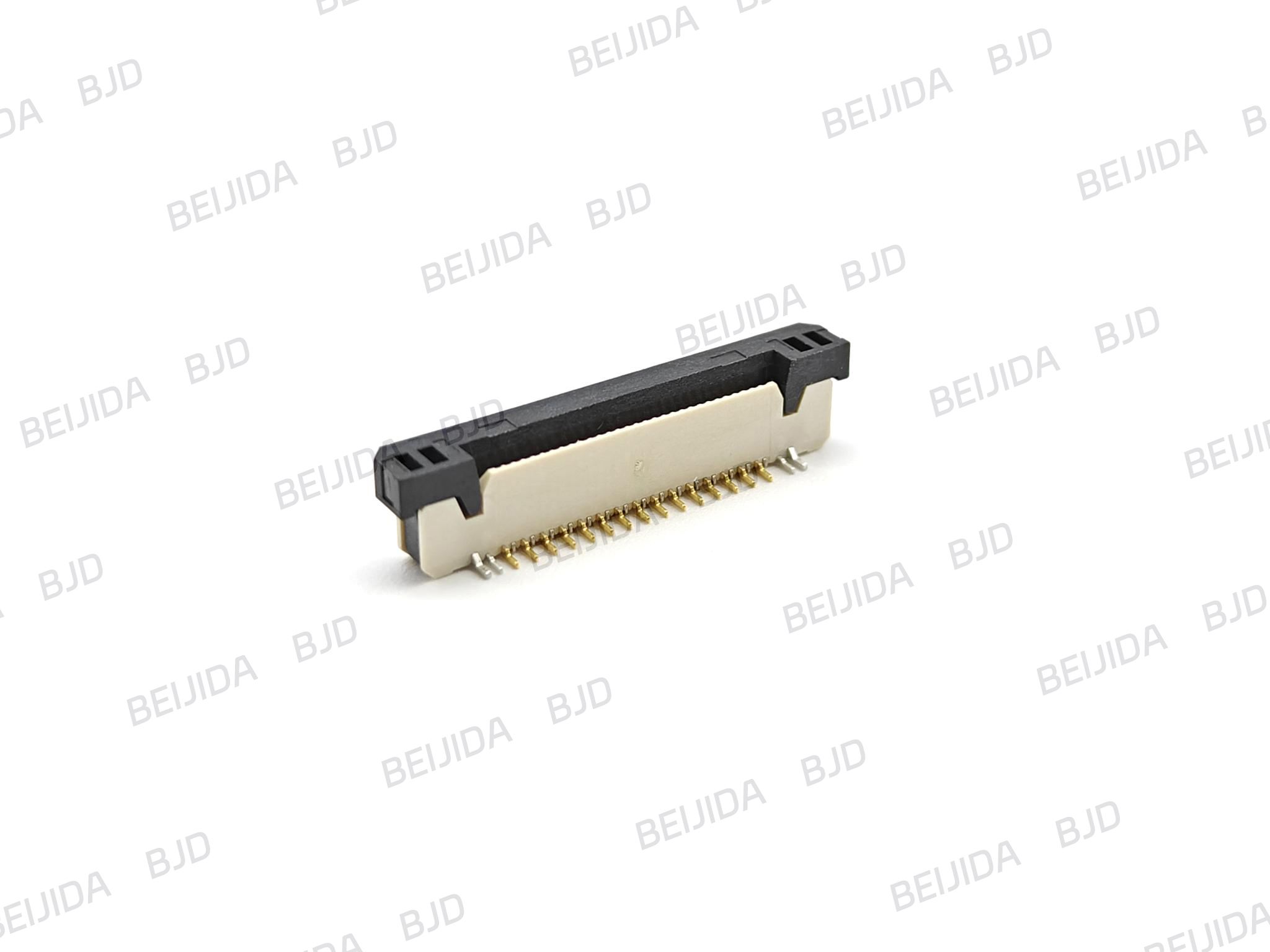

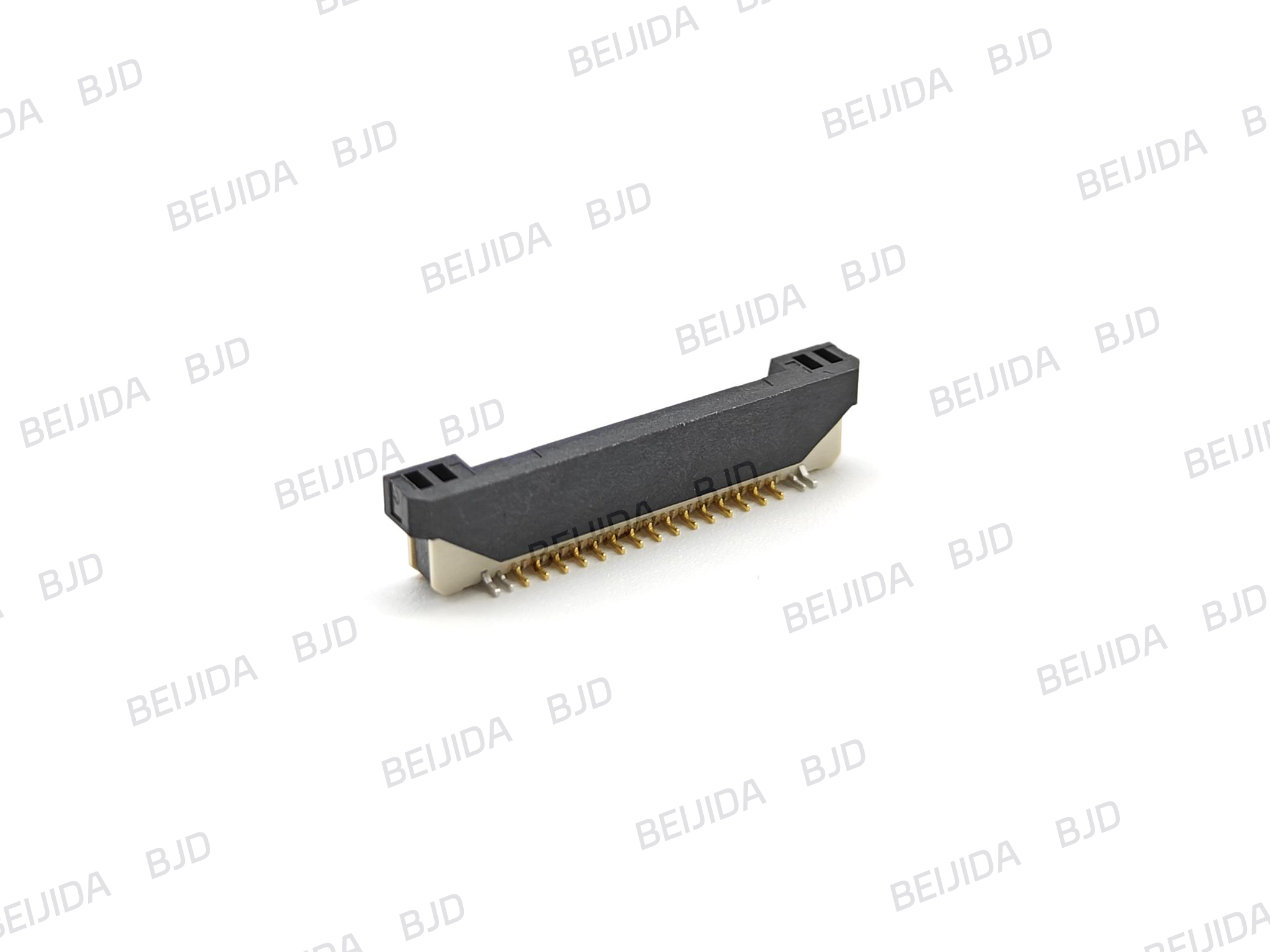

0.5-20 Series

0.5-20 Series、0.5mm、ZIF、Vertical(SMT)、Slider、Front-row/Rear-row


Related parameters

  • ZIF / Non-ZIF

    ZIF

  • Offset Terminal Design

    Front-row/Rear-row

  • Rated Current

    0.5 A

  • Rated Voltage

    50 V

  • Operating Temperature Range

    -40 ℃ ~ 105 ℃

  • Contact Position

  • FPC/FFC Insertion Direction

    Vertical

  • Mount Type

    Vertical(SMT)

  • Locking Mechanism

    Front Flip

  • Pin Count

    4 - 70

  • Pitch

    0.5 mm

  • Note
